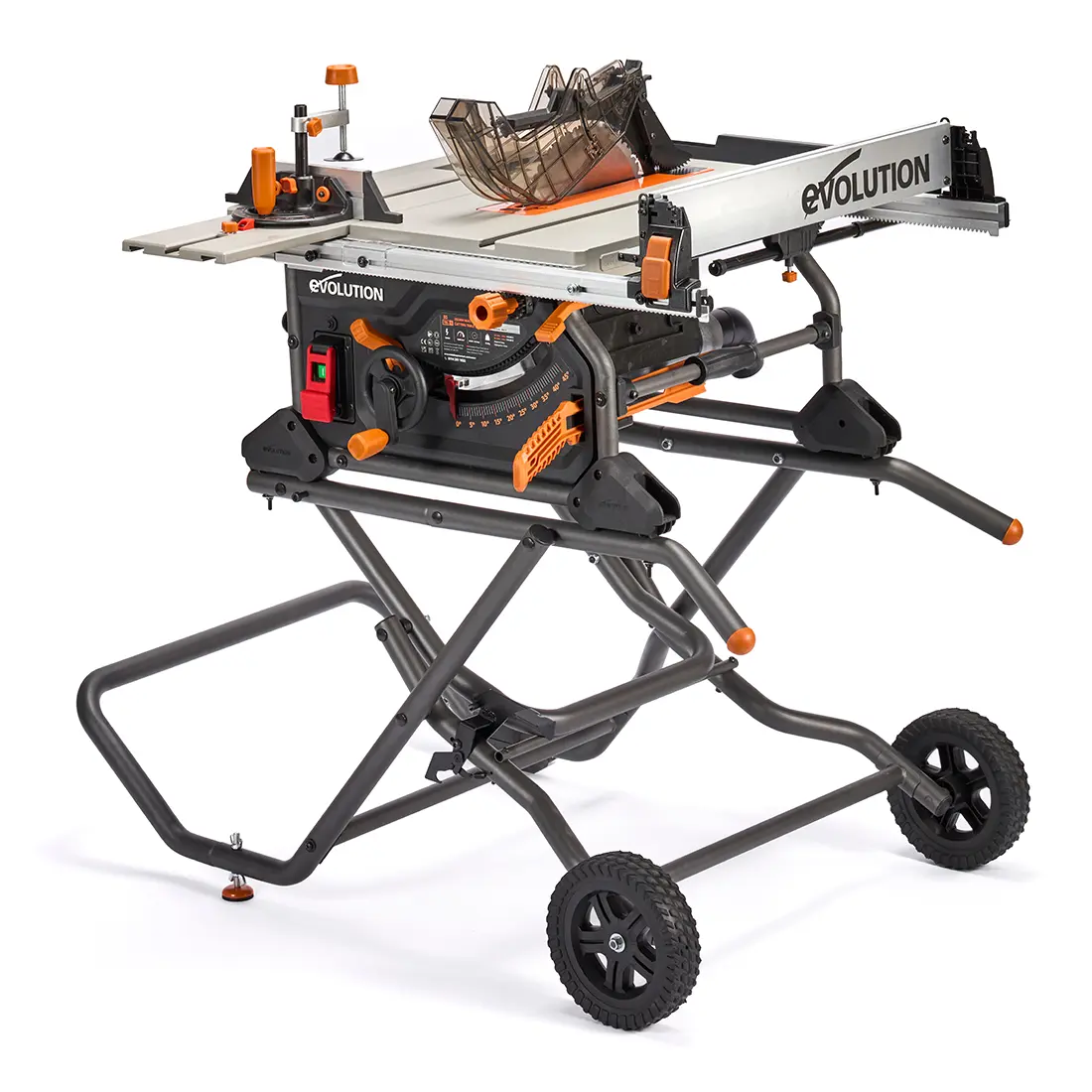

The all-new Evolution R10TBLX is a professional-grade jobsite table saw engineered for maximum power, precision, and versatility. Featuring Evolution’s patented Multi-Material Cutting Technology, the R10TBLX delivers clean, accurate cuts through wood, reclaimed materials with embedded nails and fasteners, mild steel, composites, laminates, and more all with a single blade.
Designed for demanding jobsite performance, the R10TBLX offers a 3-3/8” maximum cut depth, 26” rip capacity, and 45º bevel capability, making it ideal for a wide range of cutting applications.

POWERFUL. The fine-tuned 15A motor delivers maximum torque to power through tough materials with ease, while the premium 10” multi-material TCT blade provides clean, efficient cutting performance across multiple materials.
Soft-start technology helps reduce startup power surges, while overload protection optimizes motor performance and extends tool life. An electronic blade brake quickly stops the blade for added safety and control.

PORTABLE. Built for mobility and convenience, the supplied folding roller stand makes setup, transport, and storage easy. The collapsible frame folds quickly using a simple foot pedal system, while large all-terrain wheels provide smooth movement across jobsites.
A compact, doorway-friendly design and heavy-duty steel chassis ensure durability and portability wherever the job takes you.

ACCURATE. Engineered for precision cutting, the R10TBLX features a rack and pinion fence system with dual rack and pinion fence rails for smooth, micro-adjustable fence positioning and a multi-point locking rip fence that stays perfectly parallel to the blade.
The blade height adjustment system is designed to minimize lateral movement for improved cutting accuracy, while tool-free fine adjustment allows quick on-site calibration when needed. A zero-clearance throat plate helps reduce tear-out for cleaner cuts, while the integrated crosscut sled improves stability and repeatability during crosscuts.

VERSATILE. Supplied with dado stack compatibility, the R10TBLX is ideal for joinery, groove cuts, and a wide range of woodworking applications. The integrated outfeed support bar provides additional support for longer stock, improving handling and cutting accuracy.

SAFE. The supplied quick-release riving knife features two preset positions for safe through and non-through cuts while reducing the risk of kickback. Additional safety features include anti-kickback pawls, a large paddle switch for rapid shutoff, and an adjustable steel blade throat plate for improved cutting stability and control.
The blade guard system helps maintain a safer working environment while supporting accurate cutting performance.

Features

Multi-Material Cutting technology - Cuts wood (even wood with embedded nails), mild steel, aluminium, composites and more.
3-3/8” max cut depth and 26” max rip capacity to the right.

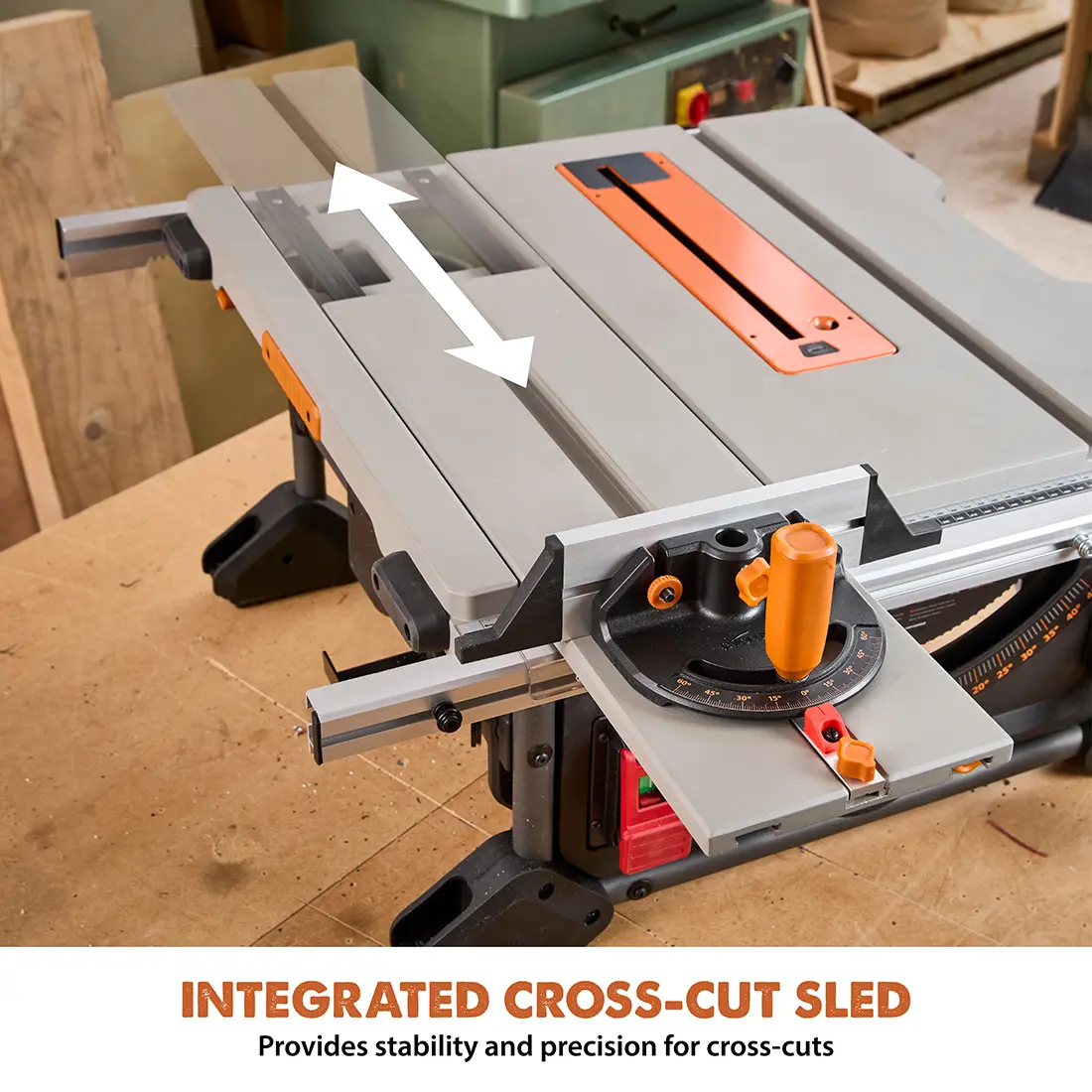

Integrated cross-cut sled for improved workpiece stability and safety.
Outfeed support bar extends the table surface for handling sheet material.
Zero-clearance throat plate minimizes tear-out for cleaner, more precise cuts.
Dado stack included for joinery and groove cutting applications.
Accurate 0-45º bevel with geared angle selector for precise angle setting.
High torque 15A motor with soft start and overload protection.
Premium 10” Multi-material cutting TCT blade supplied.
Dual rack and pinion fence rails ensure precise rip cuts.
Full length rip fence with integrated auxiliary fence.
Wheeled scissor stand for portability.
Tool-free blade to fence parallelism adjustment.
Height adjustable steel blade throat.
Soft start eliminating power trips on start up and prologues motor life.
Electronic blade brake and overload protection for added safety.
Quick-release riving knife suitable for through and non-through cuts.

Specifications

Motor (120V/ 60Hz):	15A
Speed No Load:	3300rpm
Max. Bevel (Left):	45° (-2 to 47° with stop washers removed)
Blade Dia.:	10" \| 255mm
No. of Teeth:	28
Bore:	5/8" & 1"\| 25.55mm
Kerf:	1/16" \| 2mm
Max. Depth of Cut (90°):	3-11/32" \| 85mm
Max. Depth of Cut (45°):	2-5/15" \| 58mm
Mild Steel Plate (Max. Thickness):	1/8"
Rip Capacity - Right of the blade	25-9/16"\| 650mm
Rip Capacity - Left of the blade	14-9/16" \| 371mm
Riving Knife Thickness	1.8mm
Product Dimensions:	(With Leg Assembly) 35-13/16" X 28-3/4" X 25-11/16"
Product Dimensions:	(Without Leg Assembly) 13-3/8" X 28-3/4"X 25-11/16
Table Saw Weight:	50.8 lbs
Stand Weight:	15.87 lbs
Sound Pressure Level L_PA:	93,2dB(A) K:3dB(A)
Sound Power Level L_WA:	106,2dB(A) K=3 dB(A)

Documents

Download Manual

Items Included

28T Multi-Material TCT Blade

Wheeled scissor stand

Zero Clearance Blade Throat

Blade Guard

Built In Crosscut Sled

Dust Extraction 90° Elbow

Miter Gauge

Adjustable Rip Fence

Push Stick

Riving Knife

Blade Changing Spanners

Assorted fixings
